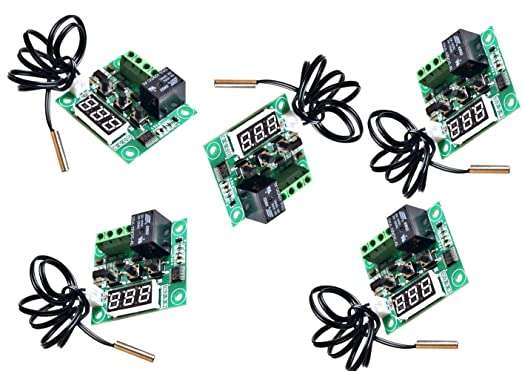

W1209 Digital Temperature Controller Thermostat (Pack of 5)

  • The W1209 Temperature Controller provides 100% complete machine patch, wave soldering, stable performance and good consistency.
  • The W1209 Temperature Controller is an embedded CPU chip (MCU), more intelligent and lower power consumption.
  • The temperature controller features an automatic memory setting for power failure (built-in EEPROM storage unit in MCU).
  • The W1209 Digital Temperature Controller has control precision of 0.1 degree Celsius. Key Product Features
  • Set the return difference of 0.1 and control the decimal (0.1-15.0).
  • Specifications:

    Temperature range :-50-110 ?

    Dimensions: 48.5 * 40mm

    Temperature control mode: ON / OFF

    Resolution:When temperature is 0.1?, the resolution is -9.9~99.9, other temperature segment is 1?

    Control accuracy: 0.1 ?

    Hysteresis accuracy: 0.1?

    Refresh rate: 0.5S

    High temperature protection: 0-110?

    Supply voltage: DC 12V

    Static current: �35MA, attract current �65MA

    Output voltage: DC 12V

    Output power: 20A relay
