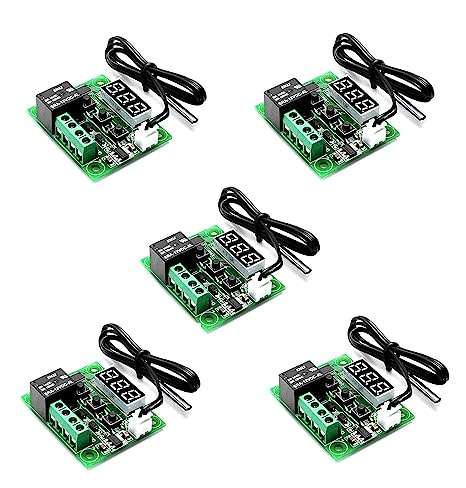

MZON W1209 Digital Temperature Controller Thermostat (Pack of 5) MZON QUALITY

Instructions for use:

Connect the power supply and equipment, the measuring temperature is displayed, press the “SET” button, press ” + or – ” to set the desired temperature (long press ” + or – ” to quickly increase or decrease), press “SET” to confirm the setting and return, controller

automatically performs the relay ON/OFF.the thermostat output is 10A relay, meet a variety of high-power loads,

LED Indicator: LED off indicates the relay off; Lighting,indicates the relay is closed.

Digital LED Tubes: “LL” indicates sensor open, “HH” indicates overrange, the relay will be forcibly disconnected; “—” indicates high temperature alarm

Long press the “SET” button to enter the main menu settings, press ” + or – ” to switching between P0-P6,then long press “SET” or 10 seconds without keystrokes to confirm the setting and return.

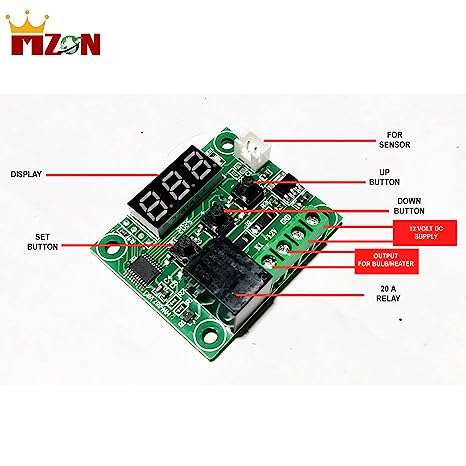

Buttons:

P0 :Cooling / Heating; Range: C/H; Default: C

P1 :Hysteresis Setting; Range:0.1-15; Default: 2

P2 :Highest Setting Limit; Range:110; Default: 110

P3: Lowest setting Limit; Range:-50; Default: -50

P4 :Temperature Correction; Range:-7-7°c; Default: 0°c

P5: Delay Start Time; Range:0-10 Minute; Default: 0

P6: Key Tone Switch; Range:0-110; Default: Off

When the Thermostat is power off, long press “- or +”, you can restore the factory settings
